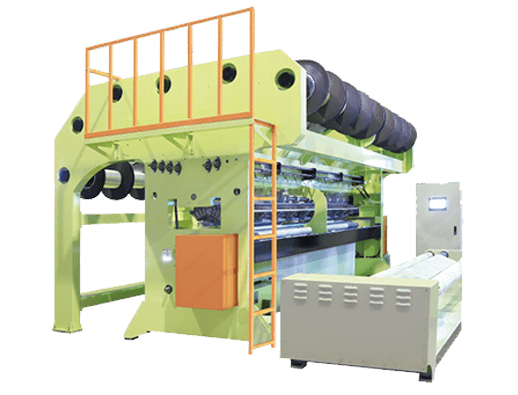

Knotless Fishing Net Making Machine SR-KF Series
Description
Fishing net making machine of SR-KF Series is single needle bed Raschel knitting machine designed for making knotless
fishing nets with various specifications in all different kinds of raw material; for example, Nylon, PE, PP, etc.
The control panel of
this series adopts inverters or servo motors to control speed, easy for machine operation and adjustment.
Features
- Beam type yarn feeding system, saving the space
- Adopt inverters or servo motors for machine control
- EBA system (electronic type beam control) is available
- Quality production and stable production speed
- Simple operating and maintenance
Specifications
| Model | SR-KF | ||
|---|---|---|---|
| Working Width | 170” | 210” | |
| Gauge of Needle Bed | 6, 9, 12, 18G/1” | ||
| Drive Bar (Total) | 2 ~ 8 | ||
| Yarn Feeding Bar | 2, 4 or 6 | ||
| Main Motor W/Inverter | 7.5 HP | 10 HP | |
| Power Consumption | 5.8 KW | 7.8 KW | |
| Yarn Let Off System | Beam | ||
| Beam | 14” x 17” dia. / 21” x 21” dia. / 42” x 30” dia. | ||
| Dimension L x W x H (mm) | 6,360 x 2,505 x 2,957 | 7,320 x 2,505 x 2,957 | |
Remarks:
1.Special specifications are also available.
2.Manufacturer reserves the right to change the specifications without notice.
